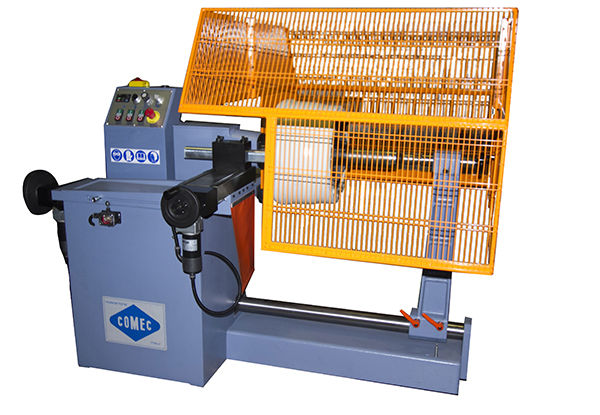

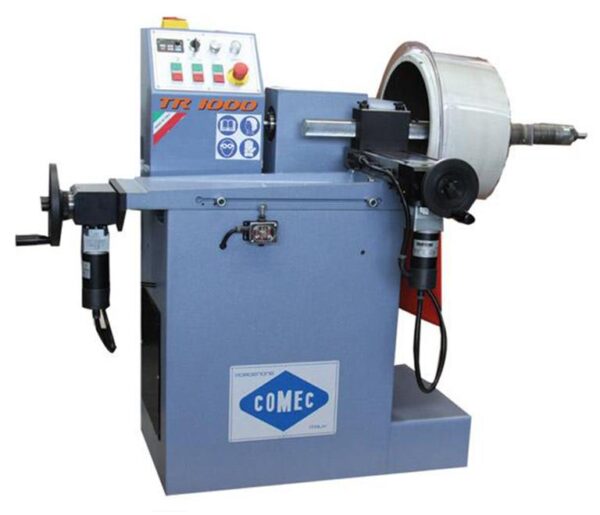

Masina za obradu diskova i dobosa TR 1000 Comec
Min-Max drum turning diameter
150÷1170 mm
Max disc turning diameter
865 mm
Longitudinal table travel
410 mm
Cross slide travel
145 mm
Spindle rotation speed
30÷120 rpm
Longitudinal table feed
0÷30 mm/min
Cross slide feed (option)
0÷30 mm/min
Spindle motor power
1.5 kW
Table motor power
0.07 kW
Dimensions (LxWxH)
1970x1400x1470 mm
Weight
655 kg
